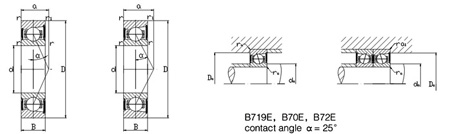

B types



Dimensions d mm	D mm	B mm	rsmin mm	r1smin mm	a	Mass ≈ (kg)	Load rating Cr_KN	Cor_KN	Attainable Speed Grease min^-1	Oil Throwaway	Bearing Code	Abutment da h12 mm	dimensions Da H12 mm	ramax mm	ra1max mm	Details



10	26	8	0.3	0.3	6	0.02	5.3	2.5	60000	90000	B7000C.T.P4S.UL	13	22.5	0.3	0.1	Details
10	26	8	0.3	0.3	8	0.02	5.1	2.4	56000	85000	B7000E.T.P4S.UL	13	22.5	0.3	0.1	Details
12	28	8	0.3	0.3	5	0.02	5.85	2.9	53000		B7001C.2RSD.T.P4S.UL	14.5	25.5	0.3	0.1	Details
12	28	8	0.3	0.3	5	0.02	5.85	2.9	53000	80000	B7001C.T.P4S.UL	14.5	25.5	0.3	0.1	Details
12	28	8	0.3	0.3	6	0.02	5.6	2.8	50000		B7001E.2RSD.T.P4S.UL	14.5	25.5	0.3	0.1	Details
12	28	8	0.3	0.3	6	0.02	5.6	2.8	50000	75000	B7001E.T.P4S.UL	14.5	25.5	0.3	0.1	Details
15	32	9	0.3	0.3	8	0.03	6.2	3.4	48000		B7002C.2RSD.T.P4S.UL	18.5	28	0.3	0.1	Details
15	32	9	0.3	0.3	8	0.03	6.2	3.4	48000	70000	B7002C.T.P4S.UL	18.5	28	0.3	0.1	Details
15	32	9	0.3	0.3	10	0.03	6	3.25	43000		B7002E.T.2RSD.T.P4S.UL	18.5	28	0.3	0.1	Details
15	32	9	0.3	0.3	10	0.03	6	3.25	43000	63000	B7002E.T.P4S.UL	18.5	28	0.3	0.1	Details
17	35	10	0.3	0.3	9	0.04	8.65	4.9	43000		B7003C.2RSD.T.P4S.UL	20	31.5	0.3	0.1	Details
17	35	10	0.3	0.3	9	0.04	8.65	4.9	43000	63000	B7003C.T.P4S.UL	20	31.5	0.3	0.1	Details
17	35	10	0.3	0.3	11	0.04	8.3	4.75	38000		B7003E.2RSD.T.P4S.UL	20	31.5	0.3	0.1	Details
17	35	10	0.3	0.3	11	0.04	8.3	4.75	38000	56000	B7003E.T.P4S.UL	20	31.5	0.3	0.1	Details
20	42	12	0.6	0.6	10	0.7	10.4	6	36000		B7004C.2RSD.T.P4S.UL	24.5	37	0.6	0.3	Details
20	42	12	0.6	0.6	10	0.7	10.4	6	36000	53000	B7004C.T.P4S.UL	24.5	37	0.6	0.3	Details
20	42	12	0.6	0.6	13	0.07	10	5.7	32000		B7004E.2RSD.T.P4S.UL	24.5	37	0.6	0.3	Details
20	42	12	0.6	0.6	13	0.07	10	5.7	32000	48000	B7004E.T.P4S.UL	24.5	37	0.6	0.3	Details
25	47	12	0.6	0.6	11	0.08	14.6	9.15	30000		B7005C.2RSD.T.P4S.UL	28.5	43	0.6	0.3	Details
25	47	12	0.6	0.6	11	0.08	14.6	9.15	30000	45000	B7005C.T.P4S.UL	28.5	43	0.6	0.3	Details
25	47	12	0.6	0.6	14	0.08	13.7	8.65	28000		B7005E.2RSD.T.P4S.UL	28.5	43	0.6	0.3	Details
25	47	12	0.6	0.6	14	0.08	13.7	8.65	28000	43000	B7005E.T.P4S.UL	28.5	43	0.6	0.3	Details
30	55	13	1	1	12	0.12	15	10.2	26000		B7006C.2RSD.T.P4S.UL	35.5	50	1	0.3	Details
30	55	13	1	1	12	0.12	15	10.2	26000	40000	B7006C.T.P4S.UL	35.5	50	1	0.3	Details
30	55	13	1	1	17	0.12	14.3	9.8	24000		B7006E.2RSD.T.P4S.UL	35.5	50	1	0.3	Details
30	55	13	1	1	17	0.12	14.3	9.8	24000	38000	B7006E.T.P4S.UL	35.5	50	1	0.3	Details
35	62	14	1	1	14	0.16	19	13.7	22000		B7007C.2RSD.T.P4S.UL	40.5	56	1	0.3	Details
35	62	14	1	1	14	0.16	19	13.7	22000	36000	B7007C.T.P4S.UL	40.5	56	1	0.3	Details
