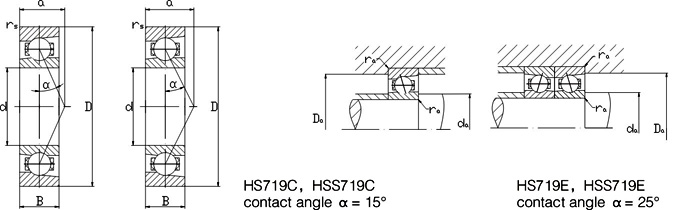

| Dimensions d mm | D mm | B mm | rsmin mm | a | Mass ≈ (kg) | Load rating | Attainable Speed Grease min -1 | Oil Throwaway | Bearing Code | Abutment da h12 mm | dimensions Da H12 mm | ramax mm | Details | |
| Cr KN | Cor KN | |||||||||||||
| 10 | 26 | 8 | 0.3 | 6 | 0.02 | 2.75 | 1.6 | 80000 | 130000 | HS7000C.T.P4S.UL | 15 | 20.5 | 0.3 | Details |
| 10 | 26 | 8 | 0.3 | 8 | 0.02 | 2.6 | 1.5 | 67000 | 100000 | HS7000E.T.P4S.UL | 15 | 20.5 | 0.3 | Details |
| 12 | 28 | 8 | 0.3 | 7 | 0.02 | 2.7 | 1.63 | 70000 | 110000 | HS7001C.T.P4S.UL | 17 | 22.5 | 0.3 | Details |
| 12 | 28 | 8 | 0.3 | 9 | 0.02 | 2.55 | 1.53 | 60000 | 90000 | HS7001E.T.P4S.UL | 17 | 22.5 | 0.3 | Details |
| 15 | 32 | 7 | 0.3 | 8 | 0.03 | 3.75 | 2.45 | 60000 | 90000 | HS7002C.T.P4S.UL | 20 | 26.5 | 0.3 | Details |
| 15 | 32 | 7 | 0.3 | 10 | 0.03 | 3.55 | 2.32 | 50000 | 75000 | HS7002E.T.P4S.UL | 20 | 26.5 | 0.3 | Details |
| 17 | 35 | 10 | 0.3 | 9 | 0.04 | 3.8 | 2.65 | 53000 | 80000 | HS7003C.T.P4S.UL | 22.5 | 29 | 0.3 | Details |
| 17 | 35 | 10 | 0.3 | 11 | 0.04 | 3.65 | 2.5 | 45000 | 67000 | HS7003E.T.P4S.UL | 22.5 | 29 | 0.3 | Details |
