| WD No. | Basic Dimensions (mm) | Type | Mass(kg) | Ref.No. | Details | ||||||||

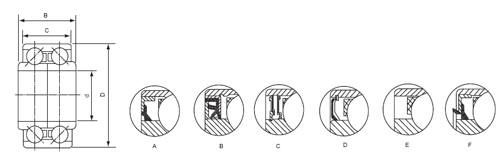

| d | D | B | C | Approx. | KOYO | FAG | SKF | SNR | NSK | Renault, Peugeot, Citroen | |||
| DAC255200206 | 25 | 52 | 20.6 | 20.6 | A | 0.19 | 617546A | Fiat,Seat | Details | ||||
| DAC25520037 | 25 | 52 | 37 | 37 | C | 0.33 | 576467 | 445539AA | FC12025S01 | Details | |||
| DAC25520042 | 25 | 52 | 42 | 542 | C | 0.36 | 25BWD01 | Details | |||||
| DAC25560032 | 25 | 56 | 32 | 32 | D | 0.35 | BAH5000 | Details | |||||
| DAC27600050 | 27 | 60 | 50 | 50 | C | 0.42 | 27BWD01J | Details | |||||
| DAC28580042 | 28 | 58 | 42 | 42 | B | 0.41 | DAC28582RK | 28BWD03A | Details | ||||
| DAC28610042 | 28 | 61 | 42 | 42 | 0 | 0.51 | DAC286142AW | 28BWD01A | Toyota | Details | |||
| DAC30550026 | 30 | 55 | 26 | 26 | A | 0.32 | 30BWD08 | Details | |||||
| DAC30600037 | 30 | 60 | 37 | 37 | A | 0.46 | DAC3060372RS | Fiat,LadaLancia,Seat,Volvo | Details | ||||
| DAC30600338 | 30 | 60.03 | 37 | 37 | A | 0.41 | DAC3060W | 529891AB | BA2B633313C | GB10790S05 | Fiat,LadaLancia, | Details | |
| DAC30600342 | 30 | 63.03 | 42 | 42 | 0 | 0.56 | DAC30603W-1 | Details | |||||
| DAC30630042 | 30 | 63 | 42 | 42 | A | 0.57 | 30BWD01A | Details | |||||
| DAC30640042 | 30 | 64 | 42 | 42 | B | 0.58 | DAC3064 | W2RKB | Details | ||||
| DAC30650021 | 30 | 65 | 21 | 21 | A | 0.27 | 522372 | BB1B630374 | Fiat,Seat,Polski | Details | |||
| DAC30680045 | 30 | 68 | 45 | 45 | C | 0.72 | 30BWD04 | Details | |||||
| DAC32720045 | 32 | 72 | 45 | 45 | B | 0.81 | 32BWB05 | Details | |||||
| DAC32730054 | 32 | 73 | 54 | 54 | B | 0.98 | DAC3273W | Details | |||||
