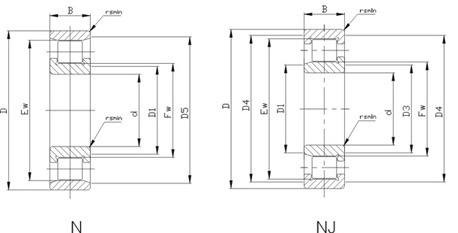

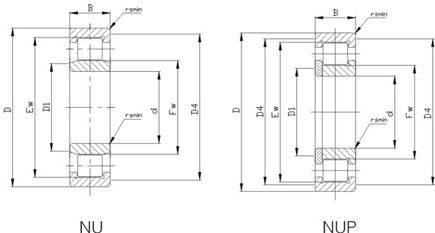

N/NJ/NU/NUP Single Row Cylindrical Roller Bearings
| |
| |
| d
| D
| B
| rsmin
| Ew
| Fw
| Mass
| CrKN
| CorKN
| Limiting
speed
| Bearing
Code
| D1min
| D1max
| D2min
| D3min
| D4max
| D5min
| D6max
| Details
|
| |
| |
| |
| 15 | 35 | 11 | 0.6 | 30.3 | 19.3 | 0.047 | 12.7 | 10.4 | 22000 | N202E | 17.4 | 18.5 | 20 | 22 | 32.6 | 31 | 29 | Details
|
| 17 | 40 | 12 | 0.6 | 35.1 | 22.1 | 0.068 | 17.6 | 14.6 | 18000 | N203E | 21 | 21.5 | 23 | 28 | 36 | 36 | 34 | Details
|
| 20 | 47 | 14 | 1 | 41.5 | 26.5 | 0.112 | 27.5 | 24.5 | 16000 | N204E | 24 | 26 | 29 | 32 | 41 | 43 | 40 | Details
|
| 25 | 52 | 15 | 1 | 46.5 | 31.5 | 0.135 | 29 | 27.5 | 15000 | N205E | 29 | 31 | 34 | 37 | 46 | | | Details
|
| 30 | 62 | 16 | 1 | 55.5 | 37.5 | 0.205 | 39 | 37.5 | 12000 | N206E | 34 | 37 | 40 | 44 | 56 | 57 | 54 | Details
|
| 35 | 72 | 17 | 1.1 | 64 | 44 | 0.301 | 50 | 50 | 10000 | N207E | 39 | 43 | 46 | 50 | 65 | 65 | 63 | Details
|
