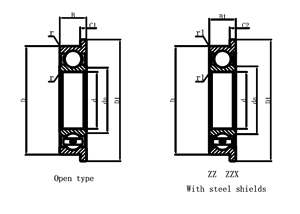

Miniature Ball Bearings With Flange



Boundary Dimensions (mm)						Basic Load Rating (kN)		Limiting Speed (rpm)		Bearing Designation		Flange dimensions (mm)				Shoulder Dimensions (mm)		Mass (g)	Details
Boundary Dimensions (mm)						Basic Load Rating (kN)		Grease	oil	Bearing Designation		Flange dimensions (mm)				Shoulder Dimensions (mm)		Mass (g)
d	D	B	B₁	r (min.)	r₁ (min.)	C_r	C_or	Open Type (ZZ,ZZX)	Open Type (Z,ZX)	Open Type	With Steel Shields	D₁	D₂	C₁	C₂	d_a (min.)	r_a (max.)	Approx



4	12	4	4	0.2	0.2	0.97	0.36	53000	63000	F604	F604 ZZ	13.5	13.5	1	1	5.6	0.2	2.3	Details
5	14	5	5	0.2	0.2	1.3	0.49	50000	60000	F605	F605 ZZ	16	16	1	1	6.6	0.2	3.9	Details
6	17	6	6	0.3	0.3	1.95	0.74	43000	51000	F606	F606 ZZ	19	19	1.2	1.2	8	0.3	6.3	Details
7	19	6	6	0.3	0.3	2.6	1.05	40000	47000	F607	F607 ZZ	22	22	1.5	1.5	9	0.3	8.7	Details
8	22	7	7	0.3	0.3	3.3	1.35	34000	41000	F608	F608 ZZ	25	25	1.5	1.5	10	0.3	13	Details
9	24	7	7	0.3	0.3	3.35	1.4	33000	40000	F609	F609 ZZ	27	27	1.5	1.5	11	0.3	16	Details
3	10	4	4	0.15	0.15	0.64	0.23	52000	63000	F623	F623 ZZ	11.5	11.5	1	1	4.2	0.15	1.8	Details
4	13	5	5	0.2	0.2	1.3	0.49.	44000	54000	F624	F624 ZZ	15	15	1	1	5.6	0.2	3.3	Details
5	16	5	5	0.3	0.3	1.75	0.67	40000	49000	F625	F625 ZZ	18	18	1	1	7	0.3	5.4	Details
6	19	6	6	0.3	0.3	2.6	1.05	35000	43000	F626	F626 ZZ	22	22	1.5	1.5	8	0.3	9.2	Details
7	22	7	7	0.3	0.3	3.3	1.35	31000	37000	F627	F627 ZZ	25	25	1.5	1.5	9	0.3	14	Details
3	13	5	5	0.2	0.2	1.3	0.49	44000	54000	F633	F633 ZZ	15	15	1	1	4.6	0.2	3.4	Details
4	16	5	5	0.3	0.3	1.75	0.67	40000	49000	F634	F634 ZZ	18	18	1	1	6	0.3	5.7	Details
5	19	6	6	0.3	0.3	2.6	1.05	35000	43000	F635	F635 ZZ	22	22	1.5	1.5	7	0.3	9.7	Details
6	22	7	7	0.3	0.3	3.3	1.35	31000	37000	F636	F636 ZZ	25	25	1.5	1.5	8	0.3	14	Details
7	26	9	9	0.3	0.3	4.55	1.95	26000	32000	F637	F637 ZZ	29	29	2	2	9	0.3	26	Details
4	11	4	4	0.15	0.15	0.96	0.35	54000	65000	F694	F694 ZZ	12.5	12.5	1	1	5.2	0.15	2	Details
5	13	4	4	0.2	0.2	1.3	0.49	50000	60000	F695	F695 ZZ	15	15	1	1	6.6	0.2	2.5	Details
6	15	5	5	0.2	0.2	1.75	0.67	45000	54000	F696	F696 ZZ	17	17	1.2	1.2	7.6	0.2	4.3	Details
7	17	5	5	0.3	0.3	1.6	0.71	42000	50000	F697	F697 ZZ	19	19	1.2	1.2	9	0.3	5.8	Details
8	19	6	6	0.3	0.3	2.25	0.91	39000	46000	F698	F698 ZZ	22	22	1.5	1.5	10	0.3	8.3	Details
9	20	6	6	0.3	0.3	2.45	1.05	35000	42000	F699	F699 ZZ	23	23	1.5	1.5	11	0.3	8.7	Details
2	7	2.8	3.5	0.15	0.15	0.39	0.13	67000	79000	F602	WF602 ZZX	8.5	8.5	0.7	0.9	3.2	0.15	0.6	Details
3	9	3	5	0.15	0.15	0.43	0.16	60000	72000	F603	WF603 ZZX	10.5	10.5	0.7	1	4.2	0.15	1	Details
2.5	6	1.8	2.6	0.1	0.1	0.19	0.06	85000	89000	F68/2.5	WF68/2.5 ZZX	7.1	7.1	0.5	0.8	3.3	0.1	0.2	Details
2	5	1.5	2.3	0.1	0.1	0.19	0.06	98000	110000	F682	WF682 ZZX	6.1	6.1	0.5	0.6	2.8	0.1	0.1	Details
3	7	2	3	0.15	0.15	0.31	0.11	66000	79000	F683	WF683 ZZX	8.1	8.1	0.5	0.8	4.2	0.1	0.4	Details
4	9	2.5	4	0.15	0.15	0.64	0.23	59000	70000	F684	WF684 ZZ	10.3	10.3	0.6	1	5.2	0.1	0.7	Details
5	11	3	5	0.15	0.15	0.97	0.36	53000	63000	F685	WF685 ZZ	12.5	12.5	0.8	1	6.2	0.15	1.1	Details
6	13	3.5	5	0.15	0.15	1.1	0.44	48000	57000	F686	WF686 ZZ	15	15	1	1.1	7.2	0.15	2.1	Details
7	14	3.5	5	0.15	0.15	1.15	0.51	45000	54000	F687	WF687 ZZ	16	16	1	1.1	8.2	0.15	2.4	Details
8	16	4	5	0.2	0.2	1.6	0.71	42000	50000	F688	WF688 ZZ	18	18	1	1.1	9.6	0.2	3.6	Details
9	17	4	5	0.2	0.2	1.35	0.66	39000	46000	F689	WF689 ZZ	19	19	1	1.1	10.6	0.2	3.9	Details
2.5	7	2.5	3.5	0.15	0.15	0.31	0.11	66000	79000	F69/2.5	WF69/2.5 ZZX	8.5	8.5	0.7	0.9	3.7	0.15	0.5	Details
2	6	2.3	3	0.15	0.1	0.33	0.1	86000	100000	F692	WF692 ZZX	7.5	7.5	0.6	0.8	3.2	0.1	0.3	Details
3	8	3	4	0.15	0.15	0.55	0.17	64000	76000	F693	WF693 ZZ	9.5	9.5	0.7	0.9	4.2	0.15	0.7	Details
