Single Row Deep Groove Ball Bearings Open Type
| |
| |

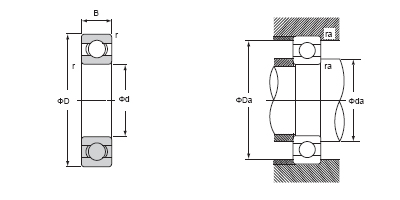

Boundary Dimensions
(mm) | Basic Load Rating
(kN) | Limiting Speed
(rpm) | Bearing
Designation | Shoulder Dimensions
(mm) | Mass
(kg) | Details |
| d | D | B | r
(min.) | Cr | Cor | Grease | Oil | da
(min.) | Da
(max.) | ra
(max.) | Approx |
| |
| |
| |
| 12 | 28 | 7 | 0.3 | 5.1 | 2.4 | 27000 | 32000 | 16001 | 14 | 26 | 0.3 | 0.024 | Details |
| 15 | 32 | 8 | 0.3 | 5.6 | 2.85 | 23000 | 28000 | 16002 | 17 | 30 | 0.3 | 0.025 | Details |
| 17 | 35 | 8 | 0.3 | 6 | 3.25 | 21000 | 25000 | 16003 | 19 | 33 | 0.3 | 0.032 | Details |
| 20 | 42 | 8 | 0.3 | 7.95 | 4.5 | 17000 | 21000 | 16004 | 22 | 40 | 0.3 | 0.05 | Details |
| 25 | 47 | 8 | 0.3 | 8.85 | 5.6 | 15000 | 18000 | 16005 | 27 | 45 | 0.3 | 0.06 | Details |
| 30 | 55 | 9 | 0.3 | 11.2 | 7.35 | 13000 | 15000 | 16006 | 32 | 53 | 0.3 | 0.085 | Details |
| 35 | 62 | 9 | 0.3 | 12.2 | 8.85 | 11000 | 13000 | 16007 | 37 | 60 | 0.3 | 0.11 | Details |
