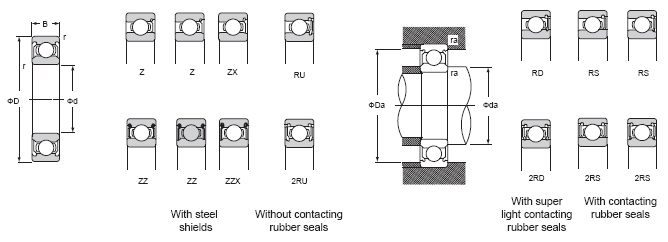

| Boundary Dimensions (mm) | Basic Load Rating (kN) | Limiting Speed (rpm) | Bearing Designation | Shoulder Dimensions (mm) | Mass (open) (kg) | Details | ||||||||||
| d | D | B | r (min.) | Cr | Cor | Grease | Oil | With steel shields | da | Da | ra | |||||
| (Z,ZZ,RU,2RU) | (RD,2RD) | (RS,2RS) | (Z) | (min. ) | (max. ) | (max. ) | (max .) | Approx | ||||||||
| 10 | 26 | 8 | 0.3 | 4.55 | 1.95 | 31000 | 28000 | 19000 | 36000 | 6000 ZZ | 12 | 13 | 24 | 0.3 | 0.019 | Details |
| 12 | 28 | 8 | 0.3 | 5.1 | 2.4 | 27000 | 24000 | 17000 | 32000 | 6001 ZZ | 14 | 15 | 26 | 0.3 | 0.022 | Details |
| 15 | 32 | 9 | 0.3 | 5.6 | 2.85 | 23000 | 21000 | 14000 | 27000 | 6002 ZZ | 17 | 18.5 | 30 | 0.3 | 0.03 | Details |
| 17 | 35 | 10 | 0.3 | 6 | 3.25 | 21000 | 19000 | 12000 | 25000 | 6003 ZZ | 19 | 21 | 33 | 0.3 | 0.039 | Details |
| 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 17000 | 15000 | 10000 | 21000 | 6004 ZZ | 24 | 25 | 38 | 0.6 | 0.069 | Details |
| 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 15000 | 14000 | 9000 | 18000 | 6005 ZZ | 29 | 29.5 | 43 | 0.6 | 0.08 | Details |
| 30 | 55 | 13 | 1 | 13.2 | 8.25 | 13000 | 12000 | 7500 | 15000 | 6006 ZZ | 35 | 36 | 50 | 1 | 0.116 | Details |
| 35 | 62 | 14 | 1 | 15.9 | 10.3 | 11000 | 9900 | 6500 | 13000 | 6007 ZZ | 40 | 42 | 58 | 1 | 0.155 | Details |
| 40 | 68 | 15 | 1 | 16.7 | 11.5 | 10000 | 9000 | 5800 | 12000 | 6008 ZZ | 45 | 46.5 | 63 | 1 | 0.192 | Details |
