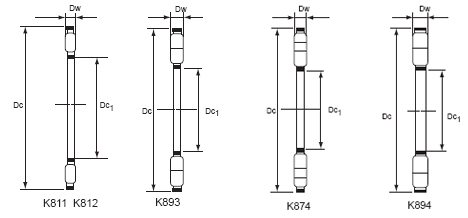

Axial Cylindrical Roller and Cage Assemblies
| |
| |
| Shaft Diameter | Bearing Designation | Mass | Boundary Dimensions | Basic Load Rating | Limiting Speed | Details |
| Dc1 | Dc | Dw | Cr Dynamic | Cor Static | Oil remark1 |
| mm | g | mm | n | rpm |
| |
| |
| |
| 15 | K81102TN | 6 | 15 | 28 | 3.5 | 13500 | 28000 | 11000 | Details |
| 17 | K81103TN | 9 | 17 | 30 | 3.5 | 14800 | 32900 | 10000 | Details |
| 20 | K81104TN | 13 | 20 | 35 | 4.5 | 23700 | 52600 | 8500 | Details |
| 25 | K81105TN | 15 | 25 | 42 | 5 | 32900 | 70000 | 7000 | Details |
| 30 | K81106TN | 17 | 30 | 47 | 5 | 34800 | 85000 | 6000 | Details |
| 35 | K81107TN | 19 | 35 | 52 | 5 | 38500 | 100900 | 5500 | Details |
| 40 | K81108TN | 31 | 40 | 60 | 6 | 55000 | 147500 | 4800 | Details |
| 45 | K81109TN | 35 | 45 | 65 | 6 | 58500 | 162500 | 4400 | Details |
| 50 | K81110TN | 38 | 50 | 70 | 6 | 60700 | 167000 | 4000 | Details |
