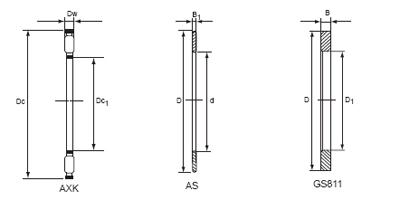

Axial Needle Roller and Cage Assemblies
| |
| |
| Shaft Diameter | Bearing Designation | Mass | Boundary Dimensions | Basic Load Rating | LimitingSpeed | Details |
| Dc1 | Dc | Dw | Cr Dynamic | Cor Static | Oil |
| mm | g | mm | N | rpm |
| |
| |
| |
| 4 | AXK0414TN | 0.7 | 4 | 14 | 2 | 4380 | 7500 | 18000 | Details |
| 5 | AXK0515TN | 0.8 | 5 | 15 | 2 | 4680 | 9100 | 17000 | Details |
| 6 | AXK0619TN | 1 | 6 | 19 | 2 | 6740 | 15400 | 16000 | Details |
| 8 | AXK0821TN | 2 | 8 | 21 | 2 | 7750 | 19000 | 15000 | Details |
| 100 | AXK100135 | 104 | 100 | 135 | 4 | 90500 | 559500 | 2000 | Details |
| 10 | AXK1024 | 3 | 10 | 24 | 2 | 9150 | 24500 | 14000 | Details |
| 110 | AXK110145 | 122 | 110 | 145 | 4 | 96500 | 617500 | 1900 | Details |
| 120 | AXK120155 | 131 | 120 | 155 | 4 | 101500 | 679600 | 1700 | Details |
| 12 | AXK1226 | 3 | 12 | 26 | 2 | 9860 | 28600 | 13000 | Details |
| 130 | AXK130170 | 205 | 130 | 170 | 5 | 132400 | 838900 | 1600 | Details |
| 140 | AXK140180 | 219 | 140 | 180 | 5 | 137200 | 899600 | 1500 | Details |
| 150 | AXK150190 | 232 | 150 | 190 | 5 | 142800 | 959000 | 1400 | Details |
