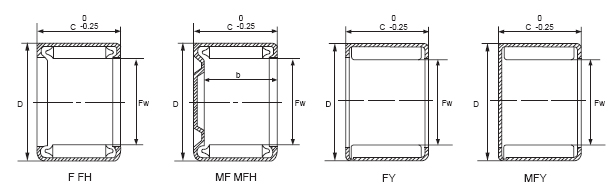

Drawn Cup Full Complement Needle Roller Bearings
| |
| |
| Shaft Diameter | Bearing Designation | Mass Approx | Boundary Dimensions | Basic Load Rating | Limiting Speed | Details |
| Current | Original Code | Fw | D | C | Cr Dynamic | Cor Static | Oil |
| mm | g | mm | N | rpm |
| |
| |
| |
| 6 | F-0608 | 30941/6 | 2.5 | 6 | 10 | 8 | 3080 | 5800 | 12000 | Details |
| 8 | F-0810 | 50941/8 | 3.7 | 8 | 12 | 10 | 4050 | 7150 | 13000 | Details |
| 9 | F-0910 | 50941/9 | 4 | 9 | 13 | 10 | 4900 | 8050 | 12000 | Details |
| 10 | F-1010 | 50941/10 | 4.2 | 10 | 14 | 10 | 5700 | 9350 | 11000 | Details |
| 12 | F-1212 | 60941/12 | 6 | 12 | 16 | 12 | 6380 | 10900 | 7100 | Details |
| 15 | F-1512 | 30941/15 | 12 | 15 | 21 | 12 | 9700 | 15900 | 8100 | Details |
| 16 | F-1616 | 50941/16 | 17 | 16 | 22 | 16 | 14100 | 25900 | 7700 | Details |
| 17 | F-1712 | 30941/17 | 13 | 17 | 23 | 12 | 10600 | 21600 | 7300 | Details |
| 17 | F-1714 | 941/17 | 15 | 17 | 23 | 14 | 12500 | 22500 | 7300 | Details |
| 17 | F-1718 | 942/17 | 21 | 17 | 23 | 18 | 13800 | 24800 | 7300 | Details |
| 18 | F-1816 | 50941/18 | 18 | 18 | 24 | 16 | 15000 | 29100 | 6900 | Details |
| 20 | F-2014 | 941/20 | 17 | 20 | 26 | 14 | 15800 | 40500 | 6900 | Details |
