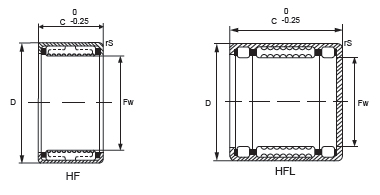

| Shaft Diameter | Bearing Designation | Boundary Dimensions | Edgo | Mass Approx | Driving Moment | Limiting Speed | Details | ||||
| Current | Original Code | Fw | D | C | Grease | Oil | |||||
| mm | mm | g | rpm | ||||||||
| 4 | HF0409 | HF-0406 | 4 | 8 | 6 | 0.3 | 1 | 0.34 | 34000 | 14000 | Details |
| 6 | HF0612 | HF-0612 | 6 | 10 | 12 | 0.3 | 3 | 1.76 | 23000 | 13000 | Details |
| 8 | HF0812 | 0 | 8 | 12 | 12 | 0.3 | 3.5 | 3.15 | 17000 | 11000 | Details |
| 10 | HF1012 | 0 | 10 | 14 | 12 | 0.3 | 4 | 5.3 | 14000 | 11000 | Details |
| 12 | HF1216 | HF1216 | 12 | 18 | 16 | 0.3 | 10.5 | 12.2 | 10000 | 7000 | Details |
| 14 | HF1416 | 0 | 14 | 20 | 16 | 0.3 | 13 | 17.3 | 9500 | 8000 | Details |
| 16 | HF1616 | 0 | 16 | 22 | 16 | 0.3 | 14 | 20.5 | 8500 | 7500 | Details |
| 18 | HF1816 | 0 | 18 | 24 | 16 | 0 | 15.5 | 24.1 | 7500 | 7500 | Details |
| 20 | HF2016 | 0 | 20 | 26 | 16 | 0 | 17 | 28.5 | 7000 | 6500 | Details |
| 25 | HF2520 | 0 | 25 | 32 | 20 | 0 | 30.9 | 66 | 5500 | 5500 | Details |
| 30 | HF3020 | 0 | 30 | 37 | 20 | 0 | 36 | 90 | 4500 | 4500 | Details |
| 35 | HF3520 | 0 | 35 | 42 | 20 | 0 | 40 | 121 | 3900 | 3900 | Details |
| 35 | HF3530 | 0 | 35 | 42 | 30 | 0 | 58 | 121 | 3900 | 3900 | Details |
| 8 | HFL0822 | 0 | 8 | 12 | 22 | 0.3 | 6.3 | 3.15 | 17000 | 12000 | Details |
| 12 | HFL1226 | 0 | 12 | 18 | 26 | 0.3 | 18 | 12.2 | 10000 | 7000 | Details |
| 14 | HFL1426 | 0 | 14 | 20 | 26 | 0.3 | 20.3 | 17.3 | 9500 | 8000 | Details |
| 16 | HFL1624 | 0 | 16 | 22 | 24 | 0.3 | 19 | 20.5 | 8500 | 7500 | Details |
| 16 | HFL1624.5 | 0 | 16 | 22 | 24.5 | 0.3 | 20 | 20.5 | 8500 | 7500 | Details |
| 16 | HFL1626 | 0 | 16 | 22 | 26 | 0.3 | 22 | 20.5 | 8500 | 7500 | Details |
| 18 | HFL1826 | 0 | 18 | 24 | 26 | 0 | 24.4 | 24.1 | 7500 | 7500 | Details |
| 20 | HFL2016 | 0 | 20 | 26 | 26 | 0 | 27 | 28.5 | 7000 | 6500 | Details |
| 25 | HFL2530 | 0 | 25 | 32 | 30 | 0 | 44 | 66 | 5500 | 5500 | Details |
| 30 | HFL3030 | 0 | 30 | 37 | 30 | 0 | 51 | 90 | 4500 | 4500 | Details |
