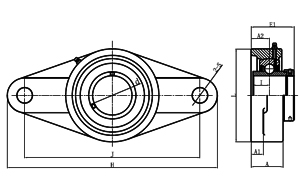

NAFLU2 Series
| |
| |
| Unit No. | Dimensions(mm) | Bolt Used(mm) | Bearing No. | Housing No. | Mass(kg) | Details |
| d | H | J | L | A 2 | A 1 | A | E 1 | S | I |
| |
| |
| |
| NAFLU202 | 15 | 99 | 76.5 | 57 | 15 | 11 | 25.5 | 38.4 | 11.5 | 13.9 | M10 | NA202 | FLU202 | 0.45 | Details |
| NAFLU203 | 17 | 99 | 76.5 | 57 | 15 | 11 | 25.5 | 38.4 | 11.5 | 13.9 | M10 | NA203 | FLU203 | 0.43 | Details |
| NAFLU204 | 20 | 112.5 | 90 | 61 | 19 | 15 | 29.5 | 45.5 | 11.5 | 17 | M10 | NA204 | FLU204 | 0.53 | Details |
| NAFLU205 | 25 | 123 | 99 | 70 | 19 | 15 | 30 | 45.9 | 16 | 17.4 | M10 | NA205 | FLU205 | 0.64 | Details |
| NAFLU206 | 30 | 142 | 116.5 | 82 | 20 | 16 | 32.5 | 50.1 | 16 | 18.2 | M10 | NA206 | FLU206 | 0.99 | Details |
| NAFLU207 | 35 | 158 | 130 | 94 | 21 | 17 | 36 | 53.3 | 16 | 18.8 | M12 | NA207 | FLU207 | 1.4 | Details |
| NAFLU208 | 40 | 172 | 143.5 | 103 | 24 | 17 | 39 | 58.9 | 16 | 21.4 | M12 | NA208 | FLU208 | 1.6 | Details |
| NAFLU209 | 45 | 180 | 148.5 | 108 | 24 | 18 | 40 | 58.9 | 19 | 21.4 | M14 | NA209 | FLU209 | 2 | Details |
| NAFLU210 | 50 | 190 | 157 | 114 | 28 | 20 | 45 | 66.1 | 19 | 24.6 | M16 | NA210 | FLU210 | 2.27 | Details |
| NAFLU211 | 55 | 217 | 184 | 128 | 31 | 21 | 48 | 74.6 | 19 | 27.7 | M16 | NA211 | FLU211 | 3.1 | Details |
| NAFLU212 | 60 | 237 | 202 | 138 | 34 | 21 | 53 | 80.8 | 23 | 30.9 | M16 | NA212 | FLU212 | 4.1 | Details |
| NAFLU213 | 65 | 256 | 210 | 152 | 38 | 22 | 56 | 89.6 | 21 | 34.1 | M18 | NA213 | FLU213 | 5.6 | Details |
| NAFLU214 | 70 | 264 | 216 | 157 | 38 | 23 | 58 | 89.6 | 21 | 34.1 | M18 | NA214 | FLU214 | 6 | Details |
| NAFLU215 | 75 | 275 | 225 | 164 | 41 | 24 | 62 | 95.8 | 21 | 37.3 | M18 | NA215 | FLU215 | 7.3 | Details |
| NAFLU216 | 80 | 290 | 233 | 180 | 42 | 25 | 63 | 99.9 | 23 | 37.3 | M20 | NA216 | FLU216 | 9 | Details |
