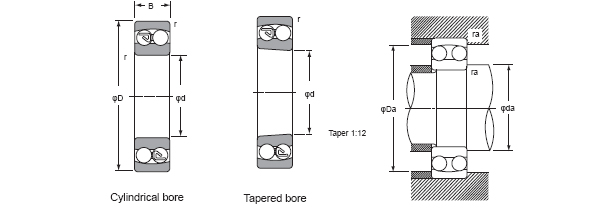

| Boundary Dimensions (mm) | Basic Load Rating (kN) | Limiting Speed (rpm) | Bearing Designation | Shoulder Dimensions (mm) | Cons-tant | Coefficient of axial load | Mass (kg) Approx | Details | |||||||||||
| d | D | B | r (min.) | C r | C or | Grease | Oil | Cylindrical bore | Tapered bore | d a (min.) | D a (max.) | r a (max.) | e | Y 1 | Y 2 | Y 0 | Cylindrical bore | Tapered bore | |
| 8 | 22 | 7 | 0.3 | 2.6 | 0.56 | 26000 | 33000 | 108 | 0 | 10 | 20 | 0.3 | 0.35 | 1.82 | 2.82 | 1.91 | 0.014 | 0 | Details |
| 10 | 30 | 9 | 0.6 | 5.5 | 1.2 | 23000 | 28000 | 1200 | 0 | 14 | 26 | 0.6 | 0.33 | 1.92 | 2.97 | 2.01 | 0.034 | 0 | Details |
| 12 | 32 | 10 | 0.6 | 5.6 | 1.25 | 21000 | 26000 | 1201 | 0 | 16 | 28 | 0.6 | 0.33 | 1.89 | 2.93 | 1.98 | 0.04 | 0 | Details |
| 15 | 35 | 11 | 0.6 | 7.45 | 1.75 | 18000 | 22000 | 1202 | 0 | 19 | 31 | 0.6 | 0.33 | 1.9 | 2.95 | 2 | 0.049 | 0 | Details |
| 17 | 40 | 12 | 0.6 | 7.9 | 2 | 16000 | 20000 | 1203 | 0 | 21 | 36 | 0.6 | 0.31 | 2.03 | 3.14 | 2.12 | 0.073 | 0 | Details |
| 20 | 47 | 14 | 1 | 9.9 | 2.6 | 14000 | 17000 | 1204 | 1204K | 25 | 42 | 1 | 0.29 | 2.16 | 3.35 | 2.27 | 0.12 | 0.118 | Details |
| 25 | 52 | 15 | 1 | 12.1 | 3.3 | 12000 | 14000 | 1205 | 1205K | 30 | 47 | 1 | 0.28 | 2.28 | 3.52 | 2.39 | 0.141 | 0.138 | Details |
| 30 | 62 | 16 | 1 | 15.6 | 4.65 | 9900 | 12000 | 1206 | 1206K | 35 | 57 | 1 | 0.25 | 2.55 | 3.94 | 2.67 | 0.22 | 0.216 | Details |
| 35 | 72 | 17 | 1.1 | 15.8 | 5.1 | 8500 | 10000 | 1207 | 1207K | 41.5 | 65.5 | 1 | 0.23 | 2.71 | 4.2 | 2.84 | 0.323 | 0.317 | Details |
| 40 | 80 | 18 | 1.1 | 19.2 | 6.5 | 7500 | 9200 | 1208 | 1208K | 46.5 | 73.5 | 1 | 0.22 | 2.83 | 4.38 | 2.97 | 0.417 | 0.411 | Details |
| 45 | 85 | 19 | 1.1 | 21.8 | 7.35 | 7000 | 8500 | 1209 | 1209K | 51.5 | 78.5 | 1 | 0.21 | 2.94 | 4.56 | 3.09 | 0.465 | 0.459 | Details |
