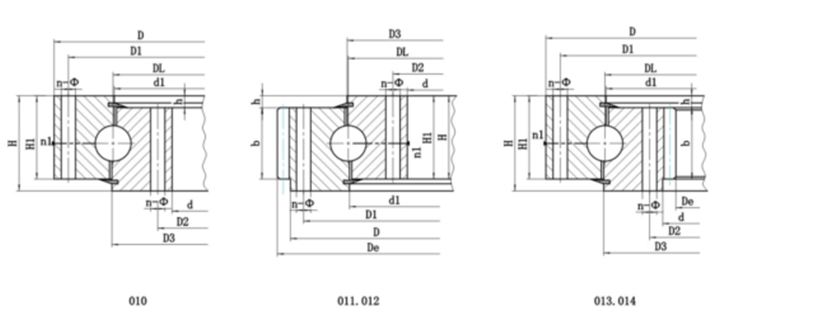

| Bearing Code | Configuration Size | Mouting Size | Structure Size | Outer Teeth | Inner Teeth | Gear Data | Details | |||||||||||||||
| D | d | H | D1 | D2 | n | dn1 dn2 | dm1 dm2 | L | n1 | H1 | h | b | x | m | da | Z | da | Z | ||||
| no teeth | outer teeth | inner teeth | mm | mm | mm | mm | mm | mm | mm | |||||||||||||
| 010.30.560 | 013.30.560 | 662 | 458 | 80 | 626 | 494 | 20 | 18 | M16 | 32 | 4 | 70 | 10 | 60 | 0.5 | 5 | 689 | 135 | 427 | 86 | Details | |
| 010.20.200 | 011.20.200 | 280 | 120 | 60 | 248 | 152 | 12 | 16 | M14 | 28 | 2 | 50 | 10 | 40 | 0 | 3 | 300 | 98 | Details | |||
| 010.20.224 | 011.20.224 | 304 | 144 | 60 | 272 | 176 | 12 | 16 | M14 | 28 | 2 | 50 | 10 | 40 | 0 | 3 | 321 | 105 | Details | |||
| 010.20.250 | 011.20.250 | 330 | 144 | 60 | 298 | 202 | 18 | 16 | M14 | 28 | 2 | 50 | 10 | 40 | 0 | 4 | 352 | 86 | Details | |||
| 010.20.280 | 011.20.280 | 360 | 200 | 60 | 328 | 232 | 18 | 16 | M14 | 28 | 2 | 50 | 10 | 40 | 0 | 4 | 384 | 94 | Details | |||
| 010.25.315 | 011.25.315 | 013.25.315 | 408 | 222 | 70 | 372 | 258 | 20 | 18 | M16 | 32 | 2 | 60 | 10 | 50 | 0 | 5 | 435 | 85 | 190 | 40 | Details |
| 010.25.355 | 011.25.355 | 013.25.355 | 448 | 262 | 70 | 412 | 298 | 20 | 18 | M16 | 32 | 2 | 60 | 10 | 50 | 0 | 5 | 475 | 93 | 235 | 49 | Details |
| 010.25.400 | 011.25.400 | 013.25.400 | 493 | 307 | 70 | 457 | 343 | 24 | 18 | M16 | 32 | 2 | 60 | 10 | 50 | 0 | 6 | 528 | 86 | 276 | 48 | Details |
| 010.25.450 | 011.25.450 | 013.25.450 | 543 | 357 | 70 | 507 | 393 | 24 | 18 | M16 | 32 | 2 | 60 | 10 | 50 | 0 | 6 | 576 | 94 | 324 | 56 | Details |
