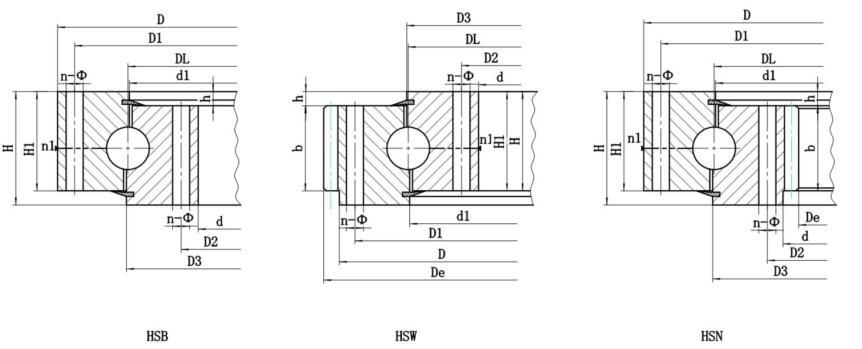

Single Row 4 Point Contact Ball Slewing Bearing – HS Series



Bearing Code					Configuration Size					Mounting Size							Structure Size
					Configuration Size					Mounting Size							Structure Size
no teeth	outer teeth	inner teeth	D	d	H	D1	D2	n	Ø	n1	D3	d1	H1	h	b	x	m	De	z	De	z	kg
DL	DL	DL	mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm		mm			mm		mm
mm	mm	mm



HSB.25.625	HSW.25.625	HSN.25.625	725	525	80	685	565	18	18	3	626	624	68	12	60	1.4							Details
HSB.25.625	HSW.25.625A	HSN.25.625A	725	525	80	685	565	18	18	3	626	624	68	12	60	1.15							Details
HSB.25.720	HSW.25.720	HSN.25.720	820	620	80	780	660	18	18	3	721	719	68	12	60	1.4							Details
HSB.25.720	HSW.25.720A	HSN.25.720A	820	620	80	780	660	18	18	3	721	719	68	12	60	1							Details
HSB.30.1020	HSW.30.1020	HSN.30.1020	1170	875	95	1120	930	24	22	4	1021	1018	80	15	70	1.4							Details
HSB.30.1020	HSW.30.1020A	HSN.30.1020A	1170	875	95	1120	930	24	22	4	1021	1018	80	15	70	1.15							Details
HSB.30.1220	HSW.30.1220	HSN.30.1220	1365	1075	120	1310	1130	36	24	6	1221	1218	105	15	90	1.4							Details
HSB.30.1220	HSW.30.1220A	HSN.30.1220A	1365	1075	120	1310	1130	36	24	6	1221	1218	105	15	90	1							Details
HSB.30.820	HSW.30.820	HSN.30.820	940	705	95	893	749	24	20	4	821	818	83	12	70	1.4							Details
HSB.30.820	HSW.30.820A	HSN.30.820A	940	705	95	893	749	24	20	4	821	818	83	12	70	1							Details
HSB.30.880	HSW.30.880	HSN.30.880	1000	760	95	956	800	24	20	4	881	878	83	12	70	1.15							Details
HSB.30.880	HSW.30.880A	HSN.30.880A	1000	760	95	956	800	24	20	4	881	878	83	12	70	1							Details
HSB.35.1250	HSW.35.1225A	HSN.35.1250A	1400	1090	120	1350	1150	36	26	6	1251	1248	105	15	90	1							Details
HSB.35.1250	HSW.35.1250	HSN.35.1250	1400	1090	120	1350	1150	36	26	6	1251	1248	105	15	90	-0.35							Details
HSB.35.1435	HSW.35.1435	HSN.35.1435	1595	1278	120	1535	1335	36	26	6	1436	1433	105	15	90	1.15							Details
HSB.35.1435	HSW.35.1435A	HSN.35.1435A	1595	1278	120	1535	1335	36	26	6	1436	1433	105	15	90	1							Details
HSB.35.1540	HSW.35.1450A	HSN.35.1540A	1720	1360	140	1660	1420	42	26	6	1541	1538	122	18	110	1.15							Details
HSB.35.1540	HSW.35.1540	HSN.35.1540	1720	1360	140	1660	1420	42	26	6	1541	1538	122	18	110	1.4							Details
HSB.35.1700	HSW.35.1700	HSN.35.1700	1875	1525	140	1815	1585	42	29	6	1701	1698	122	18	110	1.15							Details
HSB.35.1700	HSW.35.1700A	HSN.35.1700A	1875	1525	140	1815	1585	42	29	6	1701	1698	122	18	110	1.15							Details
HSB.40.1880	HSW.40.1880	HSN.40.1880	2100	1665	160	2030	1740	48	32	6	1881	1878	140	20	115	1.4							Details
HSB.40.1880	HSW.40.1880A	HSN.40.1880A	2100	1665	160	2030	1740	48	32	6	1881	1878	140	20	115	1.15							Details
HSB.40.2115	HSW.40.2115	HSN.40.2115	2325	1900	160	2245	1980	48	32	6	2116	2113	140	20	115	1.4							Details
HSB.40.2115	HSW.40.2115A	HSN.40.2115A	2325	1900	160	2245	1980	48	32	6	2116	2113	140	20	115	1.15							Details
HSB.40.2370	HSW.40.2370	HSN.40.2370	2600	2146	180	2520	2220	48	32	6	2371	2368	158	22	130	1.4							Details
HSB.40.2370	HSW.40.2370A	HSN.40.2370A	2600	2146	180	2520	2220	48	32	6	2371	2368	158	22	130	1.15							Details
HSB.40.2600	HSW.40.2600	HSN.40.2600	2835	2365	180	2750	2450	54	36	6	2601	2598	158	22	130	1.4							Details
HSB.40.2600	HSW.40.2600A	HSN.40.2600A	2835	2365	180	2750	2450	54	36	6	2601	2598	158	22	130	1.15							Details
HSB.50.2820	HSW.50.2820	HSN.50.2820	3085	2555	200	3000	2640	54	36	6	2822	2818	178	22	150	1.4							Details
HSB.50.2820	HSW.50.2820A	HSN.50.2820A	3085	2555	200	3000	2640	54	36	6	2822	2818	178	22	150	1.15							Details
HSB.50.3120	HSW.50.3120	HSN.50.3120	3400	2840	200	3310	2930	54	36	6	3122	3118	178	22	150	1.4							Details
HSB.50.3120	HSW.50.3120A	HSN.50.3120A	3400	2840	200	3310	2930	54	36	6	3122	3118	178	22	150	1.4							Details
HSB.50.3580	HSW.50.3580	HSN.50.3580	3920	3240	240	3820	3340	60	40	6	3582	3578	218	22	190	1.4							Details
HSB.50.3580	HSW.50.3580A	HSN.50.3580A	3920	3240	240	3820	3340	60	40	6	3582	3578	218	22	190	1.4							Details
HSB.50.4030	HSW.50.4030	HSN.50.4030	4370	3690	240	4270	3790	66	40	6	4032	4028	218	22	190	1.4							Details
HSB.50.4030	HSW.50.4030A	HSN.50.4030A	4370	3690	240	4270	3790	66	40	6	4032	4028	218	22	190	1.4							Details
HSB.50.4540	HSW.50.4540	HSN.50.4540	4860	4210	240	4760	4310	72	40	6	4542	4538	218	22	190	1.4							Details
HSB.50.4540	HSW.50.4540A	HSN.50.4540A	4860	4210	240	4760	4310	72	40	6	4542	4538	218	22	190	1.4							Details
