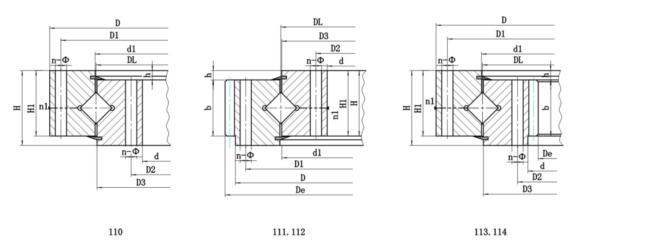

Single Row Crossed Roller Slewing Bearings – 11 Series



Bearing Code					Configuration Size					Mounting Size											Structure Size



no teeth	outer teeth	inner teeth	D	d	H	D1	D2	n	Ø	dm	L	n1	D3	d1	H1	h	b	x	m	De	z	De	z	kg
D L	D L	D L	mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm		mm			mm			mm
mm	mm	mm



110.25.500	111.25.500	113.25.500	602	398	75	566	434	20	18	M16	32	4	498	502	65	10	60	0.5	5	629	123	367	74	80	Details
110.25.560	111.25.560	113.25.560	662	458	75	626	494	20	18	M16	32	4	558	562	65	10	60	0.5	5	689	135	427	86	90	Details
110.25.630	111.25.630	113.25.630	732	528	75	696	564	24	18	M16	32	4	628	632	65	10	60	0.5	6	772.8	126	494.4	83	100	Details
110.25.710	111.25.710	113.25.710	812	608	75	776	644	24	18	M16	32	4	708	712	65	10	60	0.5	6	850.8	139	572.4	96	110	Details
110.28.1000	111.28.1000	113.28.1000	1122	878	82	1078	922	36	22	M20	40	6	998	1002	72	10	65	0.5	10	1188	116	824	83	210	Details
110.28.1120	111.28.1120	113.28.1120	1242	998	82	1198	1042	36	22	M20	40	6	1118	1122	72	10	65	0.5	10	1298	127	944	95	230	Details
110.28.800	111.28.800	113.28.800	922	678	82	878	722	30	22	M20	11	6	798	802	72	10	65	0.5	8	966.4	118	635.2	80	170	Details
110.28.900	111.28.900	113.28.900	1022	778	82	978	822	30	22	M20	40	6	898	902	72	10	65	0.5	8	1062.4	130	739.2	93	190	Details
110.32.1250	111.32.1250	113.32.1250	1390	1110	91	1337	1163	40	26	M24	48	5	1248	1252	81	10	75	0.5	12	1449.6	118	1048.8	88	350	Details
110.32.1400	111.32.1400	113.32.1400	1540	1260	91	1487	1313	40	26	M24	48	5	1398	1402	81	10	75	0.5	12	1605.6	131	1192.8	100	400	Details
110.32.1600	111.32.1600	113.32.1600	1740	1460	91	1687	1513	45	26	M24	48	5	1598	1602	81	10	75	0.5	14	1817.2	127	1391.6	100	440	Details
110.32.1800	111.32.1800	113.32.1800	1940	1660	91	1887	1713	45	26	M24	48	5	1798	1802	81	10	75	0.5	14	2013.2	141	1573.6	113	500	Details
110.40.2000	111.40.2000	113.40.2000	2178	1825	112	2110	1891	48	33	M30	60	8	1997	2003	100	13	90	0.5	16	2268.8	139	1734.4	109	900	Details
110.40.2240	111.40.2240	113.40.2240	2418	2065	112	2350	2131	48	33	M30	60	8	2237	2243	100	13	90	0.5	16	2492.8	153	1990.4	125	1000	Details
