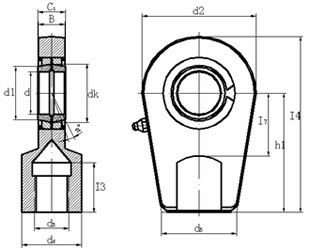

Maintenance-free Rod Ends with Female Thread
| |
| |
| Dimensions | α°≈ | Basic Load Rating | Bearing Code | Mass | Details |
| (mm) | (K N ) | (kg) |
| d | d3 | W | B | C1(max) | h1 | d2(max) | I4(max) | I5(max) | d4(max) | d5(max) | I3(mIn) | dk | Cr | Cor | weight |
| |
| |
| |
| 10 | M10 | 17 | 14 | 10.5 | 43 | 28 | 57 | 6.5 | 15 | 19 | 15 | 19.05 | 13 | 10 | 14.5 | SI10T/K | 0.077 | Details |
| 12 | M12 | 19 | 16 | 12 | 50 | 32 | 66 | 6.5 | 17.5 | 22 | 18 | 22.225 | 13 | 13.4 | 17 | SI12T/K | 0.1 | Details |
| 14 | M14 | 22 | 19 | 13.5 | 57 | 36 | 75 | 8 | 20 | 26 | 21 | 25.4 | 16 | 17 | 24 | SI14T/K | 0.16 | Details |
| 16 | M16 | 24 | 21 | 15 | 64 | 40 | 84 | 8 | 22 | 28 | 24 | 28.575 | 15 | 21.6 | 28.5 | SI16T/K | 0.22 | Details |
| 18 | M18X1.5 | 27 | 23 | 16.5 | 71 | 44 | 93 | 10 | 25 | 31 | 27 | 31.7 | 15 | 26 | 42.5 | SI18T/K | 0.32 | Details |
| 20 | M20X1.5 | 30 | 25 | 18 | 77 | 48 | 101 | 10 | 27.5 | 35 | 30 | 34.925 | 14 | 31.5 | 42.5 | SI20T/K | 0.42 | Details |
| 22 | M22X1.5 | 32 | 28 | 20 | 84 | 54 | 111 | 12 | 30 | 38 | 32 | 38.1 | 15 | 38 | 57 | SI22T/K | 0.54 | Details |
| 25 | M24X2 | 36 | 31 | 22 | 94 | 60 | 124 | 12 | 33.5 | 42 | 36 | 42.85 | 15 | 47.5 | 68 | SI25T/K | 0.72 | Details |
| 28 | M27X2 | 41 | 35 | 24 | 103 | 66 | 136 | 14 | 37 | 46 | 41 | 47.6 | 15 | 55 | 75.5 | SI28T/K | 0.82 | Details |
| 30 | M30X2 | 46 | 37 | 25 | 110 | 70 | 145 | 15 | 40 | 50 | 45 | 50.8 | 17 | 64 | 88 | SI30T/K | 1.1 | Details |
| 5 | M5 | 9 | 8 | 6 | 27 | 18 | 36 | 4 | 8.5 | 12 | 8 | 11.11 | 13 | 3.25 | 5.7 | SI5T/K | 0.016 | Details |
| 6 | M6 | 11 | 9 | 6.75 | 30 | 20 | 40 | 5 | 10 | 13 | 9 | 12.7 | 13 | 4.3 | 7.2 | SI6T/K | 0.022 | Details |
| 8 | M8 | 14 | 12 | 9 | 36 | 24 | 48 | 5 | 12.5 | 16 | 12 | 15.875 | 14 | 7.2 | 11.6 | SI8T/K | 0.047 | Details |
