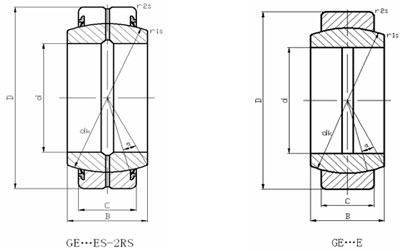

Spherical Plain Radial Bearing with Fitting Crack (Middle Series)
-7960ccfd-d704-414d-a498-d17ad12e3452.jpg "Spherical Plain Radial Bearing with Fitting Crack (Middle Series).jpg")
| |
| |
| Dimensions | α°≈ | Basic Load Rating | Bearing Code | Mass | Details |
| (mm) | (K N ) | (kg) |
| d | D | B | C | dk | r1s (min) | r2s (min) | Cr | Cor | weight |
| |
| |
| |
| 100 | 160 | 85 | 55 | 140 | 1 | 1 | 140 | 655 | 3250 | GEG100ES | GEG100ES-2RS | 5.9 | Details |
| 10 | 22 | 12 | 7 | 18 | 0.3 | 0.3 | 18 | 10.8 | 54 | GEG10E | 0 | 0.02 | Details |
| 12 | 26 | 15 | 9 | 22 | 0.3 | 0.3 | 22 | 17 | 85 | GEG12E | 0 | 0.034 | Details |
| 15 | 30 | 16 | 10 | 25 | 0.3 | 0.3 | 25 | 21.2 | 106 | GEG15E | 0 | 0.046 | Details |
| 17 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 29 | 30 | 146 | GEG17E | 0 | 0.078 | Details |
| 20 | 42 | 25 | 16 | 35.5 | 0.6 | 0.6 | 36 | 48 | 240 | GEG20ES | GEG20ES-2RS | 0.15 | Details |
| 25 | 47 | 28 | 18 | 40.7 | 0.6 | 0.6 | 41 | 12 | 310 | GEG25ES | GEG25ES-2RS | 0.19 | Details |
| 30 | 55 | 32 | 20 | 47 | 0.6 | 1 | 47 | 80 | 400 | GEG30ES | GEG30ES-2RS | 0.29 | Details |
| 35 | 62 | 35 | 23 | 53 | 0.6 | 1 | 53 | 100 | 500 | GEG35ES | GEG35ES-2RS | 0.39 | Details |
| 40 | 68 | 40 | 25 | 60 | 0.6 | 1 | 60 | 127 | 640 | GEG40ES | GEG40ES-2RS | 0.52 | Details |
| 45 | 75 | 43 | 28 | 66 | 0.6 | 1 | 66 | 156 | 780 | GEG45ES | GEG45ES-2RS | 0.68 | Details |
| 50 | 90 | 56 | 36 | 80 | 0.6 | 1 | 80 | 245 | 1220 | GEG50ES | GEG50ES-2RS | 1.4 | Details |
| 60 | 105 | 63 | 40 | 92 | 1 | 1 | 92 | 315 | 1560 | GEG60ES | GEG60ES-2RS | 2 | Details |
| 6 | 16 | 9 | 5 | 13 | 0.3 | 0.3 | 13 | 5.5 | 27.5 | GEG6E | 0 | 0.008 | Details |
| 70 | 120 | 70 | 45 | 105 | 1 | 1 | 105 | 400 | 2000 | GEG70ES | GEG70ES-2RS | 2.9 | Details |
| 80 | 130 | 75 | 50 | 115 | 1 | 1 | 115 | 490 | 2450 | GEG80ES | GEG80ES-2RS | 3.5 | Details |
| 8 | 19 | 11 | 6 | 16 | 0.3 | 0.3 | 16 | 8.15 | 40.5 | GEG8E | 0 | 0.014 | Details |
| 90 | 150 | 85 | 55 | 130 | 1 | 1 | 130 | 610 | 3050 | GEG90ES | GEG90ES-2RS | 5.4 | Details |
