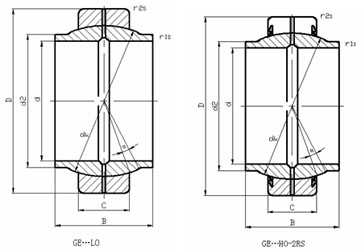

Spherical Plain Radial Bearing with Wide Inner Ring and Fitting Crack
| |
| |
| Dimensions | α°≈ | Basic Load Rating | Bearing Code | Mass | Details |
| (mm) | (K N ) | (kg) |
| d | d2min | D | B | C | dk | r1s (min) | r2s (min) | Cr | Cor | weight |
| |
| |
| |
| 20 | 24 | 35 | 24 | 12 | 29 | 0.2 | 0.3 | 3 | 30 | 146 | GE20HO-2RS | 0.057 | Details |
| 20 | 25 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 4 | 30 | 146 | GE20LO | 0.07 | Details |
| 25 | 29 | 42 | 29 | 16 | 35.5 | 0.2 | 0.6 | 3 | 48 | 240 | GE25HO-2RS | 0.1 | Details |
| 25 | 30 | 42 | 25 | 16 | 35.5 | 0.6 | 0.6 | 4 | 48 | 240 | GE25LO | 0.12 | Details |
| 30 | 34.2 | 47 | 30 | 18 | 40.7 | 0.2 | 0.6 | 3 | 62 | 310 | GE30HO-2RS | 0.14 | Details |
| 32 | 38 | 52 | 32 | 18 | 44 | 0.6 | 1 | 4 | 67 | 335 | GE32LO | 0.2 | Details |
| 35 | 40 | 55 | 35 | 20 | 47 | 0.3 | 1 | 3 | 80 | 400 | GE35HO-2RS | 0.24 | Details |
| 40 | 45 | 62 | 38 | 22 | 53 | 0.3 | 1 | 3 | 100 | 500 | GE40HO-2RS | 0.29 | Details |
| 45 | 51.5 | 68 | 40 | 25 | 60 | 0.3 | 1 | 3 | 127 | 640 | GE45HO-2RS | 0.43 | Details |
| 50 | 56.5 | 75 | 43 | 28 | 66 | 0.3 | 1 | 3 | 156 | 780 | GE50HO-2RS | 0.54 | Details |
| 50 | 57 | 75 | 50 | 28 | 66 | 0.6 | 1 | 4 | 156 | 780 | GE50LO | 0.56 | Details |
| 60 | 67.7 | 90 | 54 | 36 | 80 | 0.3 | 1 | 3 | 245 | 1220 | GE60HO-2RS | 1.1 | Details |
| 63 | 71.5 | 95 | 63 | 36 | 83 | 0.1 | 1 | 4 | 255 | 1270 | GE63LO | 1.2 | Details |
| 70 | 78 | 105 | 65 | 40 | 92 | 0.3 | 1 | 3 | 315 | 1560 | GE70HO-2RS | 1.6 | Details |
| 70 | 79 | 105 | 70 | 40 | 92 | 1 | 1 | 4 | 315 | 1560 | GE70LO | 1.7 | Details |
| 80 | 90 | 120 | 74 | 45 | 105 | 0.3 | 1 | 3 | 400 | 2000 | GE80HO-2RS | 2.4 | Details |
| 80 | 91 | 120 | 80 | 45 | 105 | 1 | 1 | 4 | 400 | 2000 | GE80LO | 2.4 | Details |
| 40 | 46 | 62 | 40 | 22 | 53 | 0.6 | 1 | 4 | 100 | 500 | GELO | 0.34 | Details |
