Double Direction Thrust Ball Bearing with Spherical Outer Ring

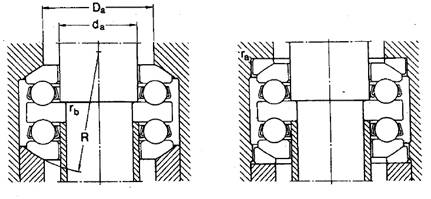

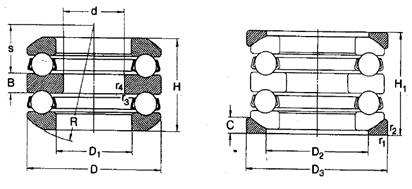

Boundary Dimensions													Basic Load Rating		Limiting Speed(rpm)		Designation		Shoulder Dimensions (mm)				Mass		Details
(mm)													(K N )		Grease	Oil	Designation		Shoulder Dimensions (mm)				(kg)
d	D	H	r1、2min	r3、4min	D1	D2	D3	B	C	H1	R	S	Cr	Cor	Grease	Oil	Bearing	Housing washer	da(max)	Da(max)	ra(max)	rb(max)	Approx	Housing washer



30	62	37.8	1	0.3	37	48	65	8	7	42	50	21	35.1	67	3000	4000	54207	U207	35	48	1	0.3	0.42	0.057	Details
30	68	38.6	1	0.6	42	55	72	9	7	44	56	25	46.8	98	2800	3800	54208	U208	40	55	1	0.6	0.56	0.07	Details
45	90	49.6	1	0.6	57	72	95	10	9	55	72	32.5	61.8	134	1900	2800	54211	U211	55	72	1	0.6	1.15	0.15	Details
25	60	41.3	1	0.3	32	45	62	9	7	46	50	19.5	37.7	65.5	2800	3800	54306	U306	30	45	1	0.3	0.47	0.056	Details
30	68	47.2	1	0.3	37	52	72	10	7.5	52	56	21	49.4	88	2400	3400	54307	U307	35	52	1	0.3	0.68	0.084	Details
30	78	54.1	1	0.6	42	60	82	12	8.5	59	64	23.5	61.8	112	2000	3000	54308	U308	40	60	1	0.6	1.05	0.12	Details
35	85	56.3	1	0.6	47	65	90	12	10	62	64	21	76.1	140	1900	2800	54309	U309	45	65	1	0.6	1.25	0.17	Details
40	95	64.7	1.1	0.6	52	72	100	14	11	70	72	23	88.4	173	1800	2600	54310	U310	50	72	1	0.6	1.85	0.23	Details
50	110	70.7	1.1	0.6	62	85	115	15	11.5	78	90	36.5	101	208	1600	2200	54312	U312	60	85	1	0.6	2.6	0.31	Details
65	140	86.1	1.5	1	82	110	145	18	15	95	112	45.5	159	360	1200	1700	54316	U316	80	110	1.5	1	5.05	0.57	Details
70	150	92.5	1.5	1	88	115	155	19	17.5	105	112	39	190	425	1100	1600	54317	U317	85	115	1.5	1	6.35	0.81	Details
35	100	78.9	1.1	0.6	47	72	105	17	12.5	86	80	23.5	130	240	1600	2200	54409	U409	45	72	1	0.6	2.7	0.32	Details
40	110	83.2	1.5	0.6	52	80	115	18	14	92	90	30	159	310	1500	2000	54410	U410	50	80	1.5	0.6	3.55	0.46	Details
65	170	128.5	2.1	1	83	125	175	27	22	140	125	30.5	270	620	850	1200	54416	U416	80	125	2	1	14	1.4	Details
80	210	159.9	3	1.1	103	155	220	33	27	176	160	43.5	371	965	700	950	54420	U420	100	155	2.5	1	26	2.9	Details
