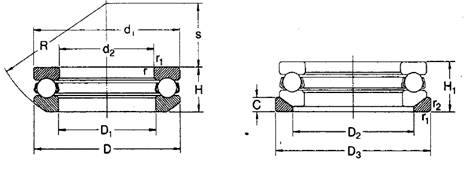

Single Direction Thrust Ball Bearings with Spherical Outer Ring
| |
| |
| Boundary Dimensions | Basic Load Rating | Limiting Speed(rpm) | Designation | Shoulder Dimensions (mm) | Mass | Details |
| (mm) | (K N ) | Grease | Oil | (kg) |
| d | D | H | r1、2min | d1 | D1 | D2 | D3 | C | H1 | R | S | Cr | Cor | Bearing | Housing washer | da(min) | Da(max) | ra(max) | Approx | Housing washer |
| |
| |
| |
| 12 | 28 | 11.4 | 0.6 | 28 | 14 | 20 | 30 | 3.5 | 13 | 25 | 11.5 | 13.3 | 19 | 6000 | 8000 | 53201 | U201 | 22 | 20 | 0.6 | 0.033 | 0.012 | Details |
| 15 | 32 | 13.3 | 0.6 | 32 | 17 | 24 | 35 | 4 | 15 | 28 | 12 | 16.5 | 25 | 5300 | 7000 | 53202 | U202 | 25 | 24 | 0.6 | 0.049 | 0.014 | Details |
| 17 | 35 | 13.2 | 0.6 | 35 | 19 | 26 | 38 | 4 | 15 | 32 | 16 | 17.2 | 27.5 | 5000 | 6700 | 53203 | U203 | 28 | 26 | 0.6 | 0.056 | 0.015 | Details |
| 20 | 40 | 14.7 | 0.6 | 40 | 22 | 30 | 42 | 5 | 17 | 36 | 18 | 22.5 | 37.5 | 4500 | 6000 | 53204 | U204 | 32 | 30 | 0.6 | 0.082 | 0.02 | Details |
| 25 | 47 | 16.7 | 0.6 | 47 | 27 | 36 | 50 | 5.5 | 19 | 40 | 19 | 27.6 | 50 | 4000 | 5300 | 53205 | U205 | 38 | 36 | 0.6 | 0.12 | 0.032 | Details |
| 30 | 52 | 17.8 | 0.6 | 52 | 32 | 42 | 55 | 5.5 | 20 | 45 | 22 | 25.5 | 47.5 | 3600 | 4800 | 53206 | U206 | 43 | 42 | 0.6 | 0.14 | 0.038 | Details |
| 35 | 62 | 19.9 | 1 | 62 | 37 | 48 | 65 | 7 | 22 | 50 | 24 | 35.1 | 67 | 3000 | 4000 | 53207 | U207 | 51 | 48 | 1 | 0.22 | 0.057 | Details |
| 40 | 68 | 20.3 | 1 | 68 | 42 | 55 | 72 | 7 | 23 | 56 | 28.5 | 46.8 | 98 | 2800 | 3800 | 53208 | U208 | 57 | 55 | 1 | 0.28 | 0.07 | Details |
| 45 | 73 | 21.3 | 1 | 73 | 47 | 60 | 78 | 7.5 | 24 | 56 | 26 | 39 | 80 | 2600 | 3600 | 53209 | U209 | 62 | 60 | 1 | 0.3 | 0.087 | Details |
| 50 | 78 | 23.5 | 1 | 78 | 52 | 62 | 82 | 7.5 | 26 | 64 | 32.5 | 49.4 | 106 | 2400 | 3400 | 53210 | U210 | 67 | 62 | 1 | 0.37 | 0.1 | Details |
| 55 | 90 | 27.3 | 1 | 90 | 57 | 72 | 95 | 9 | 30 | 72 | 35 | 61.8 | 134 | 1900 | 2800 | 53211 | U211 | 76 | 72 | 1 | 0.6 | 0.15 | Details |
| 60 | 95 | 28 | 1 | 95 | 62 | 78 | 100 | 9 | 31 | 72 | 32.5 | 62.4 | 140 | 1900 | 2800 | 53212 | U212 | 81 | 78 | 1 | 0.66 | 0.16 | Details |
| 65 | 100 | 28.7 | 1 | 100 | 67 | 82 | 105 | 9 | 32 | 80 | 40 | 63.7 | 150 | 1800 | 2600 | 53213 | U213 | 86 | 82 | 1 | 0.73 | 0.18 | Details |
| 70 | 105 | 28.8 | 1 | 105 | 72 | 88 | 110 | 9 | 32 | 80 | 38 | 65 | 160 | 1800 | 2600 | 53214 | U214 | 91 | 88 | 1 | 0.78 | 0.19 | Details |
| 75 | 110 | 28.3 | 1 | 110 | 77 | 92 | 115 | 9.5 | 32 | 90 | 49 | 67.6 | 170 | 1700 | 2400 | 53215 | U215 | 96 | 92 | 1 | 0.81 | 0.21 | Details |
