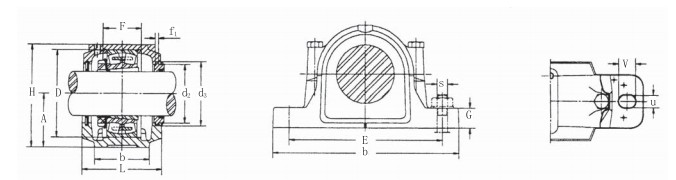

SNK500 Plummer block

HOUSING NO.	L	b	f1	F	D	d2	d3	H	A	G	E	B	v	u	S	WEIGHT(kg)

SNK506-605	77	52	5	32	62	36.5	44.5	88	50	22	150	185	22	13	10	2
SNK507-606	82	52	5	34	72	46.5	54.5	93	50	22	150	185	20	13	10	2.32
SNK508-607	85	60	5	39	80	51.5	59.5	108	60	25	170	205	20	15	12	2.9
SNK509	85	60	5	30	85	56.5	64.5	1 1 1	60	25	170	205	20	15	12	3.1
SNK510-608	90	60	5	41	90	62	70.5	1 14	60	25	170	205	20	15	12	3.31
SNK511-609	95	70	5	44	100	67	75.5	129	70	28	210	255	23	18	16	4.54
SNK512-610	105	70	5	48	1 10	72	80.5	134	70	30	210	255	23	18	16	5.47
SNK513-611	110	80	5	51	120	77	85.5	149	80	30	230	275	24	18	16	6.6
SNK515-612	115	80	5	56	130	87	95.5	155	80	30	230	280	26	18	16	7.3
SNK516-613	120	90	5	58	140	92.5	101	175	95	32	260	315	29	22	20	9.95
SNK517	125	90	5	61	150	97.5	106	181	95	32	260	320	30	22	20	10.82
SNK518-615	140	100	5	65	160	102.5	111	192	100	35	290	345	27	22	20	13.3
SNK519-616	145	100	6	68	170	131	141	208.5	1 12	35	290	345	27	22	20	15
SNK520-617	160	110	6	70	180	137.5	147.5	214.5	1 12	40	320	380	32	26	24	18.8
SNK522-619	175	120	6	80	200	147.5	157.5	238.5	125	45	350	410	32	26	24	23.5
SNK524-620	185	120	6	86	215	157.5	167.5	271	140	45	350	410	32	26	24	28
SNK526	190	130	6	90	230	167.5	177.5	290	150	50	380	445	35	28	24	34
SNK528	205	150	6	98	250	177.5	187.5	302	150	50	420	500	42	35	30	41.5
SNK530	220	160	6	106	270	192.5	202.5	323	160	60	450	530	42	35	30	50.5
SNK532	235	160	6	114	290	202.5	212.5	344	170	60	470	550	42	35	30	56.7
