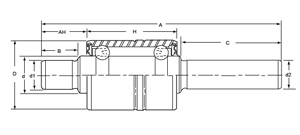

Double-row Ball Water Pump Bearings – WB 1938 Series
| |
| |
Bearing Designation | Boundary Dimensions (mm) | Details |
WD | NSK | FAG | RHP | KOYO | D | H | A | AH | d | d1 | d2 | B | C |
| |
| |
| |
| 885746 | | | | | 38.1 | 53.975 | 156.6 | | 18.961 | 15.918 | 15.918 | | 59.82 | Details |
| 885790 | | | | | 38.1 | 53.975 | 148.84 | | 18.961 | 15.918 | 15.918 | 34.92 | 49.66 | Details |
| 885802 | | | | | 38.1 | 53.975 | 95.4 | 14.7 | 18.948 | 15.926 | | 11.3 | | Details |
| 885815 | | | | | 38.1 | 53.975 | 141.76 | | 18.961 | | 15.918 | | 51.59 | Details |
| 885825 | | | | | 38.1 | 53.975 | 120.65 | | 18.961 | | 15.918 | | 43.26 | Details |
| 885869 | | | | | 38.1 | 53.975 | 127.48 | | 18.961 | 15.918 | 15.918 | 13.72 | 39.29 | Details |
| 885884 | | | | | 38.1 | 53.975 | 161 | | 18.961 | 15.918 | 15.918 | 33.53 | 55.88 | Details |
| WB1938121 | | | FPS135 | 885800CRSE | 38.1 | 53.975 | 120.65 | 24.26 | 18.961 | | 15.918 | | 39.675 | Details |
